Published on Aug. 27, 2026
During mixing, reaction, dilution, crystallization, neutralization and material storage, chemical processes can generate significant heat. If this heat is not removed quickly and consistently, product quality, reaction stability, production efficiency and equipment reliability may all be affected.
Traditional chemical plants often rely on chilled water systems, cooling towers or direct refrigeration. However, some processes require a large amount of cooling capacity within a relatively short period.
This is where a plate ice machine for chemical industry cooling can provide an effective alternative.
By producing large quantities of thin plate ice, an industrial plate ice system can store refrigeration capacity in advance and release it when the production line experiences peak cooling demand.
For batch-oriented chemical plants, this can be especially useful because cooling demand is often highly variable rather than constant.

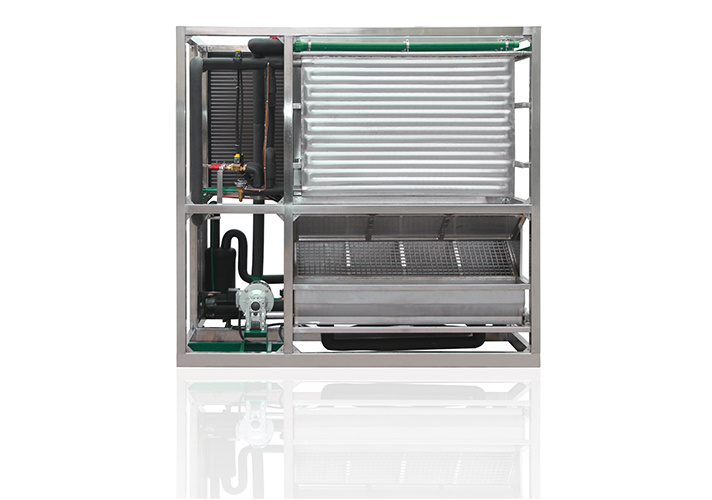

A plate ice machine is an industrial refrigeration machine that produces ice on vertically or horizontally arranged evaporator plates.
Water flows or is distributed across the refrigerated plate surface. As heat is removed, a layer of ice forms on the plate.
Once the required thickness is reached, the machine enters a harvesting cycle and releases the ice.
The resulting ice is normally:
Flat
Relatively thin
Hard
Dry
Easy to store
Suitable for crushing or conveying
Depending on the design, plate ice thickness may be adjusted to suit different industrial applications.
For chemical factories, the main purpose is usually not food preservation but industrial heat removal and cold-energy storage.
Chemical reactions can release substantial heat.
These are generally referred to as exothermic reactions.
If reaction temperature rises too quickly, it may affect:
Reaction rate
Conversion efficiency
Product consistency
Selectivity
Material stability
Chemical plants typically control this heat through:
Reactor jackets
Internal coils
Chilled water
Glycol systems
Cooling water
Ice-assisted cooling systems
Plate ice can be introduced into an intermediate cooling system or used to produce low-temperature chilled water.
A typical configuration may be:
Plate Ice Machine → Ice Storage Tank → Ice/Water Mixing Tank → Pump → Reactor Cooling Loop
This design allows stored ice to absorb sudden heat loads during the reaction stage.
Batch processes are especially suitable for ice-based cooling because thermal demand often changes throughout each production cycle.
A typical batch may include:
Raw material loading
Mixing
Reaction
Cooling
Stabilization
Discharge
Cooling demand may be very low during the first stages and extremely high during the reaction or final cooling stage.
A plate ice machine for batch chemical processing can continuously produce ice between batches and store sufficient cooling capacity for the next production cycle.
This can reduce the need to size the main refrigeration plant entirely around short-duration peak loads.
Some chemical products generate heat during mixing.
This may occur when:
Powders dissolve in liquids
Concentrated chemicals are diluted
Acids and bases are mixed
Reactive additives are introduced
In these applications, temperature control can influence both safety and final product performance.
Plate ice can support a chilled-water system used around:
Mixing tanks
Agitated vessels
Blending tanks
Process vessels
For direct-contact applications, chemical compatibility must be evaluated carefully. In many chemical factories, it is safer to use the ice indirectly through a secondary cooling circuit.
Acid-base neutralization reactions can release significant heat.
Where large volumes of acidic and alkaline materials are processed, cooling may be necessary to prevent excessive temperature rise.
An ice-based cooling system can provide additional heat-removal capacity during neutralization.
Possible industries include:
Wastewater treatment chemicals
Surface treatment chemicals
Metal processing chemicals
Industrial cleaning chemicals
Specialty chemical manufacturing
The required cooling capacity should be calculated according to the chemical reaction heat rather than simply tank volume.
Many industrial crystallization processes require carefully controlled cooling rates.
Temperature influences:
Crystal nucleation
Crystal size
Crystal shape
Product purity
Rapid or uncontrolled cooling may produce crystals that are too small or inconsistent.
Plate ice can be used as part of a controlled chilled-water system to provide additional cooling capacity.
Applications may include:
Inorganic salts
Specialty chemicals
Fine chemicals
Chemical intermediates
For crystallization applications, the cooling system should be designed to achieve the required temperature profile rather than simply maximum cooling speed.
Polymerization reactions are often strongly exothermic.
Effective heat removal can therefore be an important part of polymer and resin production.
Possible applications include:
Adhesive production
Resin manufacturing
Coating materials
Polymer processing
Synthetic materials
Chemical intermediates
An industrial plate ice system may supplement existing process refrigeration during high thermal loads.
This is especially relevant in plants operating multiple batches per day.
Many chemical factories require large volumes of cooled process water.
Plate ice can be mixed with water inside a storage tank to produce chilled water rapidly.
The chilled water may then be circulated to:
Heat exchangers
Reactor jackets
Mixing tanks
Production equipment
Cooling loops
This approach can be relatively simple because the ice itself does not necessarily need to contact the chemical product.
Ice stores a significant amount of thermal energy due to its latent heat.
This makes it effective for industrial peak-load cooling.
Ice can be produced in advance.
The refrigeration compressor therefore does not always have to match the highest instantaneous process cooling load.
Additional stored cooling capacity can help maintain more consistent temperatures during high-heat production stages.
Chemical batch operations frequently have irregular heat loads.
Ice storage matches this operating pattern particularly well.
Plate ice can be transported to different production areas or used centrally to generate chilled water.
One industrial plate ice plant can potentially serve multiple:
Reactors
Mixing tanks
Cooling loops
Production lines
Where electricity tariffs vary by time of day, ice production may be scheduled during lower-cost electricity periods.
The stored cooling energy can then be used during production peaks.
Actual energy savings depend on local electricity pricing and system design.
Chemical manufacturing environments require more careful equipment selection than general commercial ice applications.
Chemical plants may contain:
Acidic vapors
Alkali vapors
Salts
Solvents
High humidity
Equipment materials should therefore be selected according to the installation environment.
Stainless steel may be used for certain ice-contact components, but material grade should be confirmed based on actual operating conditions.
Not every chemical product should come into direct contact with ice or water.
For most sensitive applications, an indirect system may be preferable:
Ice → Chilled Water → Heat Exchanger → Chemical Process
This separates the chemical material from the ice-making system.
Some chemical plants handle flammable gases, vapors or solvents.
If refrigeration or electrical equipment will be installed inside a hazardous area, appropriate explosion-protection requirements must be evaluated.
This may affect:
Motors
Electrical panels
Sensors
Wiring
Controls
Hazardous-area classifications should always be determined according to the project's local standards and plant safety requirements.
Industrial plate ice machines may use different refrigeration configurations.
Buyers should evaluate:
Refrigerant type
Local regulations
Refrigerant availability
Maintenance capability
Plant refrigeration infrastructure
Environmental requirements
Large chemical factories may also integrate the plate ice machine with an existing central refrigeration plant.
B2B buyers should provide more information than simply asking for a "20-ton ice machine."
Important parameters include:
Typically expressed as:
Tons/24 h
kg/24 h
Ice thickness influences:
Harvesting
Storage
Melting rate
Crushing requirements
Higher inlet water temperatures increase refrigeration load.
High ambient temperatures can affect condenser performance and machine capacity.
Determine whether the condenser will use:
Air cooling
Water cooling
Evaporative cooling
Confirm:
Voltage
Frequency
Phase
For example:
380V / 50Hz / 3Ph
or
460V / 60Hz / 3Ph
depending on the project location.
Ice storage should match production schedules and peak cooling demand.
Specify whether the machine will be installed:
Indoors
Outdoors
Near corrosive chemicals
In a hazardous area
In a high-temperature workshop
Regular maintenance helps ensure stable ice output and refrigeration efficiency.
Important tasks include:
Checking refrigeration pressures
Inspecting compressor operation
Cleaning condenser surfaces
Checking water distribution
Inspecting evaporator plates
Monitoring ice harvesting
Checking pumps
Inspecting electrical connections
Cleaning ice storage areas
Checking sensors and alarms
In chemical environments, corrosion inspection should also be included in the preventive maintenance schedule.
A plate ice machine can provide stored cooling capacity for reactor cooling, batch production, process water cooling, crystallization, chemical mixing and other temperature-sensitive industrial processes.
Ice allows refrigeration capacity to be stored in advance. This is useful when the process experiences short periods of very high cooling demand.
Only when the chemical formulation and process allow direct water or ice contact. For many industrial processes, an indirect cooling loop using chilled water or a heat exchanger is preferable.
Yes. Ice-based thermal storage can provide additional cooling capacity during high-heat reaction stages. The required system capacity must be calculated from the actual reaction heat.
Yes. Batch production is one of the most suitable applications because cooling demand can fluctuate significantly between different stages of each batch.
Capacity depends on the total heat load, cooling time, production schedule, reaction heat, inlet water temperature, ambient temperature and storage strategy.
Yes. A plate ice machine can supplement an existing chiller by providing additional peak-load cooling through an ice-storage or ice-water system.
Material selection depends on the operating environment. Stainless steel is commonly used for ice-contact parts, but chemical exposure and corrosion conditions should be evaluated separately.
Yes. Industrial plate ice plants can use PLC controls for automatic ice production, storage monitoring, water circulation, pump control and alarm management.
Yes. A centralized system can distribute ice or chilled water to multiple reactors, tanks or processing areas if the storage, piping and pumping system is correctly designed.
Chemical manufacturing often requires much more than simple refrigeration.
Batch reactions, dilution, neutralization, polymerization, crystallization and mixing can create sudden and highly variable heat loads. A conventional refrigeration plant sized only for average demand may struggle during these peak periods, while installing oversized chiller capacity can increase investment and electrical demand.
A plate ice machine for chemical industry cooling offers another solution by storing cooling energy as ice.
The system can produce plate ice during lower-load periods and release that cooling capacity when a reactor, mixing tank or production process requires rapid heat removal.
Its main advantages include:
High thermal storage capacity
Peak cooling support
Stable process temperature
Suitability for batch production
Flexible chilled-water integration
Centralized industrial cooling
Potential off-peak refrigeration operation
For successful implementation, buyers should evaluate the complete process rather than selecting a machine only according to tons of ice per day.
The most important design information includes process heat load, reaction heat, target temperature, required cooling time, number of batches, ambient conditions, water temperature, storage capacity and cooling-loop configuration.
When properly engineered, an industrial plate ice machine can become an effective thermal-storage and process-cooling solution for chemical manufacturing plants with fluctuating or high peak refrigeration demand.
