| Model Parameters | PD10 | PD20 | PD30 | PD50 | PD100 | PD200 | |
| Daily output (T/24h) | 1 | 2 | 3 | 5 | 10 | 20 | |
| Compressor Power(HP) | 4 | 9 | 14 | 28 | 44 | 2*44 | |
| Fan Power for Cooling Tower | 0.18kw | 0.37kw | 0.37kw | 0.75kw | 1.5kw | 2.2kw | |
| Cooling Pump Power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 4kw | 5.5kw | |
| Ice Cutter Motor | 1.1kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 1.5kw | |
| Circulating Water Pump | 0.37kw | 0.55kw | 0.55kw | 0.75kw | 1.1kw | 2.2kw | |
| Unit size | L (mm) | 1700 | 1950 | 2050 | 2200 | 2650 | 3950 |
| W (mm) | 1130 | 1400 | 1420 | 2050 | 2180 | 2200 | |
| H (mm) | 1830 | 1920 | 2130 | 2150 | 2240 | 2300 | |
| Unit N.W.(kg) | 900 | 1400 | 1550 | 1880 | 3200 | 4500 | |
♦ Compressor Brand: Bitzer / Refcomp ♦ Cooling Method: Water Cooling/Air Cooling ♦ Power Supply: 380V~420V, 50Hz, 3P; 220V~240V/380V, 60Hz, 3P; 440V~480V, 60Hz, 3P;♦ Main application: supermarket, pelagic fishing, seafood processing and preservation, meat processing, medical, chemical, environmental engineering industry etc. | |||||||

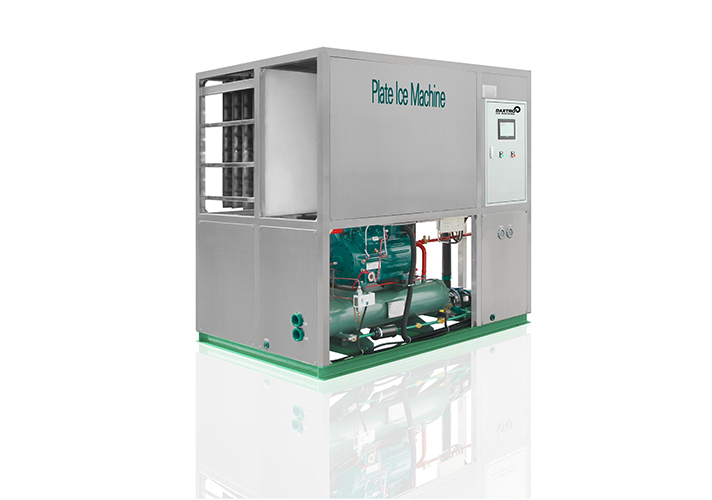

A Plate Ice Machine is an advanced industrial refrigeration system designed to produce thin, dry, and flat ice sheets with excellent cooling efficiency. It is widely used in seafood processing, concrete cooling, chemical industries, food processing, mining, agriculture, and temperature control applications.
Compared with traditional ice-making systems, plate ice machines offer faster heat exchange, lower energy consumption, higher automation levels, and more hygienic ice production. The produced ice has a large contact surface area, allowing rapid cooling without damaging products.
Our industrial Plate Ice Machines are engineered with durable components, intelligent control systems, and customizable capacities to meet various industrial cooling requirements worldwide.
What Is a Plate Ice Machine?

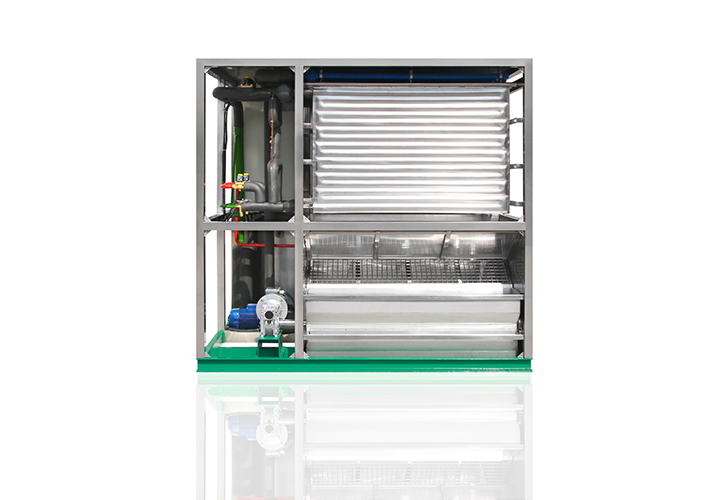

A Plate Ice Machine is an automated system that freezes water on vertical evaporator plates. Once the ice reaches the desired thickness, a hot gas defrost process releases the ice sheets, which then break into smaller pieces for easy handling and distribution.

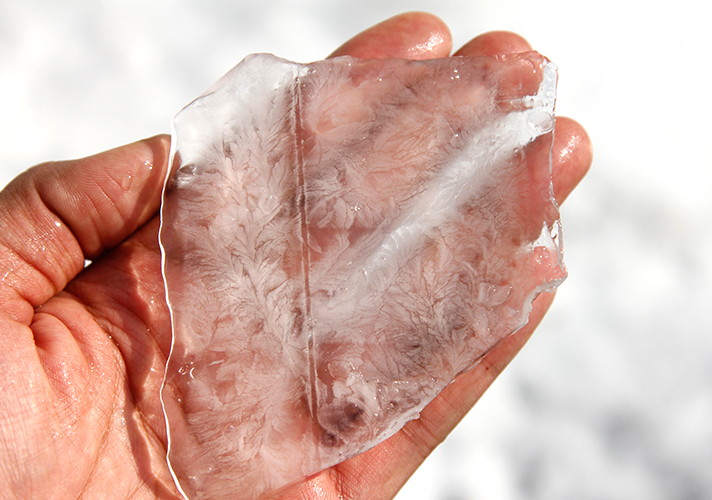

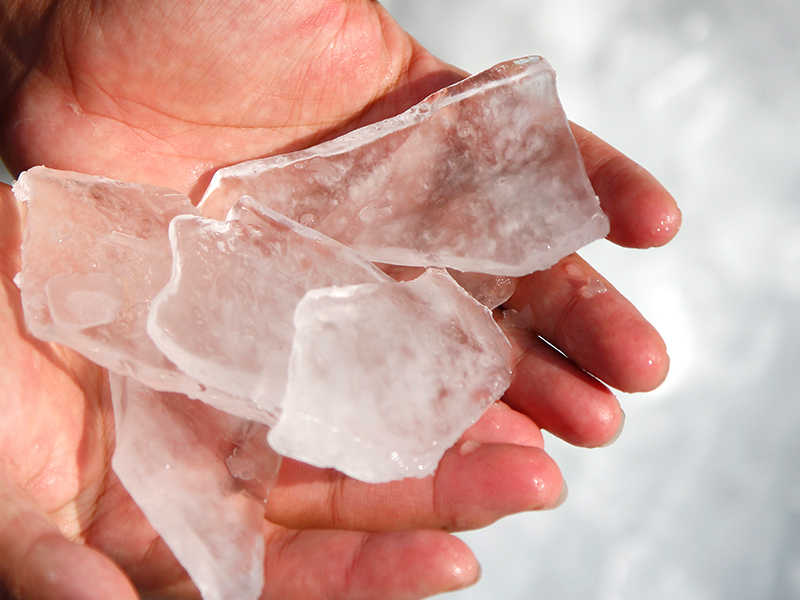

The ice produced is:
Thin and flat
Dry and non-sticky
Uniform in size
Easy to store and transport
Highly efficient for rapid cooling
The system is suitable for continuous operation and demanding industrial environments.
Key Features of Our Plate Ice Machine
High Ice Production Efficiency
Advanced evaporator technology ensures rapid freezing and stable ice production throughout the day.
Energy-Saving Operation
Optimized refrigeration systems reduce electricity consumption while maintaining maximum output.
Fully Automatic Control
PLC intelligent control enables automatic water feeding, ice making, harvesting, and system monitoring.
Food-Grade Hygienic Design
Components in contact with water are manufactured from food-grade materials to ensure sanitary ice production.
Durable Construction
High-quality stainless steel and corrosion-resistant components extend equipment lifespan.
Low Maintenance Requirements
Simple mechanical structures reduce downtime and maintenance costs.
Stable Continuous Operation
Designed for 24/7 industrial production environments.
Customizable Capacity
Available in multiple configurations to satisfy different production demands.
Why Choose Our Plate Ice Machine?
Professional Manufacturing Experience
Years of expertise in industrial refrigeration equipment manufacturing.
High-Quality Components
We cooperate with internationally recognized component suppliers.
Strict Quality Control
Every machine undergoes rigorous testing before shipment.
Customized Solutions
Tailored designs based on:
Industry applications
Production capacity
Climate conditions
Installation space
Energy requirements
Global Technical Support
We provide comprehensive after-sales services, including:
Installation guidance
Remote technical support
Operator training
Spare parts supply
Maintenance assistance
Competitive Pricing
Factory-direct supply ensures excellent value for customers worldwide.
Optional Configurations
Customers can choose additional systems according to project requirements:
Ice storage bins
Automatic ice conveyors
Ice crushers
Remote monitoring systems
Water purification systems
Heat recovery systems
Containerized ice plants
Industries We Serve
Our Plate Ice Machines are exported worldwide and serve various industries:
Seafood processing plants
Food factories
Concrete batching plants
Mining companies
Chemical manufacturers
Agricultural enterprises
Cold storage facilities
Logistics centers
Fishing vessels
Supermarkets
· Durable & Stable Structure
High-strength stainless steel evaporator and reliable refrigeration components ensure long service life and stable performance.
·Efficient Cooling & Low Energy Consumption
Thin plate ice provides a large heat exchange surface, enabling faster ice formation and reduced energy consumption per ton of ice. It has only 60KWH per ton for power consumption
·Fully Automatic Intelligent Control
PLC control with touch screen enables automatic ice making, harvesting, and system protection with minimal manual operation.
·Adjustable Ice Thickness
Ice thickness can be adjusted to meet different cooling requirements.

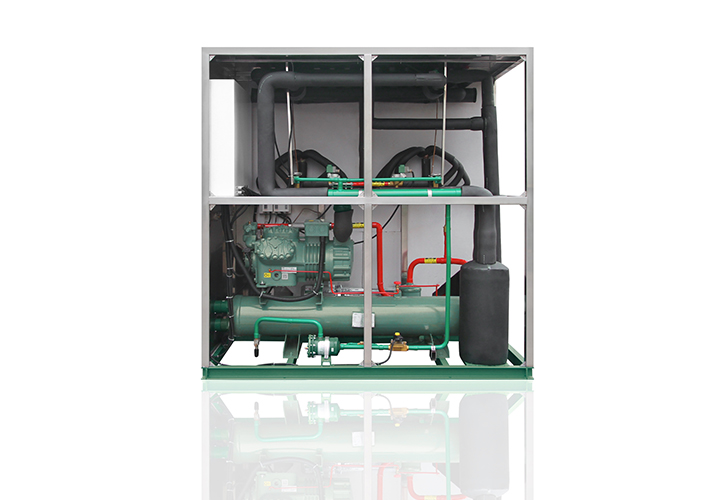

·Reliable Core Components
Equipped with internationally recognized compressors and high-quality electrical components for stable long-term operation.
